Tailgate wiring loom, applies to Rover 200/25 and ZR

The tailgate wiring loom YMN 101940 of the 200/25/ZR also including various other models, do tend to cause plenty of electrical problems, especially in the section of where the wires pass from the body to tailgate through two small rubber protection sleeves, which are located on either side of the tailgate hinges, the wiring inside the sleeves are associated with the following. The sleeve on the left carries just the water supply tube for the rear screen wash. The sleeve on the right carries a multitude of wires for window heater element, high level brake light etc, and are packed tightly into the sleeve, so no surprises that problems will occur.


Wires inside the sleeve will constantly fold over each other each time the tailgate is in use, so they will fray and eventually break. Any damaged wires will eventually create really annoying electrical problems, soldering and insulating a couple of broken wires is not a problem, but if its beyond a really decent repair then a replacement loom is a much better option.

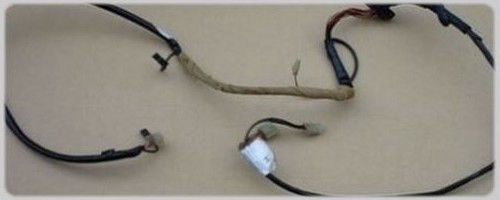

YMN 101940 200/25/ZR loom

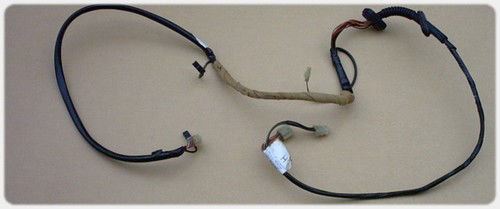

Tailgate wiring loom YMN-101940 of 200/25/ZR

Taking the above information into account its still always best to first decide if there actually is a problem within the wiring harness, as an example, if both the brake light bulbs are out, then this could possibly be a serious wiring fault, or just a blown fuse, so this would be an easier option to first resolve.

Black / Green - - - - -- -2.5 square mm - Heated Window - live

Black - - - - - - - - - - --2.5 square mm - Heated Window - earth

Light Green / Grey - - -- 1.0 square mm - Wiper Motor - wire 1

Brown / Green - - - - - -- 1.0 square mm - Wiper Motor - wire 2

Red / Green - - - - - - - --1.0 square mm - Wiper Motor - wire 3

Green / Purple - - - - - 1.0 square mm - High Brake Light - live

Purple / Red - - - - - - - -1.0 square mm - Tailgate Door Switch

Orange - - - - - - - - - -1.0 square mm - Central Locking - wire 1

Pink - - - - - - - - - - - - 1.0 square mm - Central Locking - wire 2

Red / Orange - - - - - - - - -0.5 square mm - Number Plate - live
